Diagnostic Multimeter

DM208Thermal Imaging Multimeter

AUTOOL DM208 Thermal Imaging Multimeter for accurate electrical testing and infrared thermal imaging diagnostics.

  • The AUTOOL DM208 combines infrared thermal imaging and multimeter functions. It supports AC/DC voltage, current, resistance,…
  • Intelligent Temperature Detection with Automatic Hot/Cold Spot Tracking
  • Dual-Light Fusion Display with 4 Color Palettes
  • 2.4-Inch IPS Color Display
  • One-Touch Image and Data Saving
Infrared Resolution
32×32
Minimum Focusing Distance
0.25m
Display Resolution
320×240

DM208 at a glance

Infrared Resolution
32×32
Minimum Focusing Distance
0.25m
Display Resolution
320×240

Overview

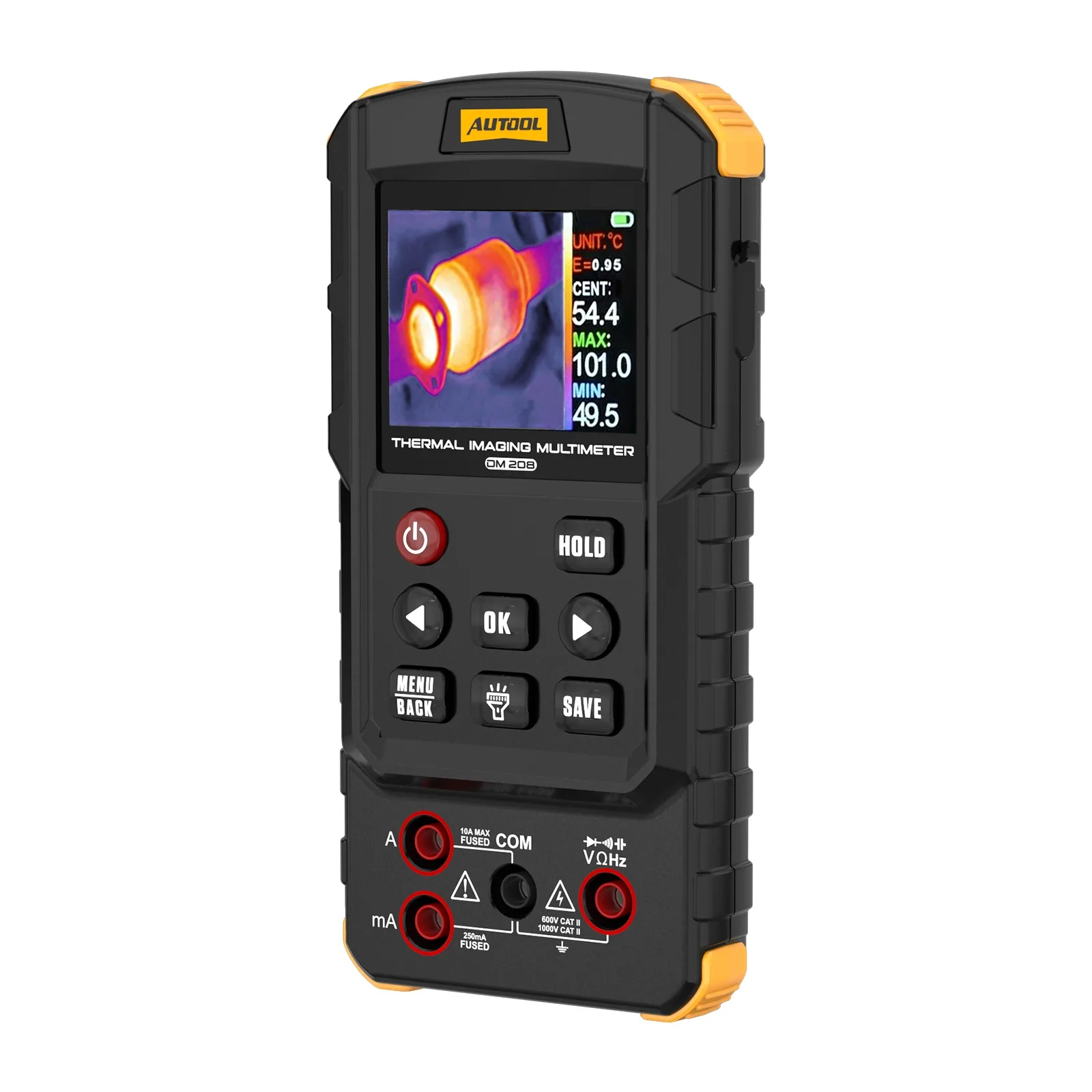

DM208 Thermal Imaging Multimeter

The AUTOOL DM208 is a multifunctional testing device that combines infrared thermal imaging and a high-precision digital multimeter. In multimeter mode, it supports AC/DC voltage and current, resistance, capacitance, frequency, diode, and continuity testing. With a 25,000-count high-precision display, it can simultaneously display measurement values and waveform curves to meet a variety of electrical testing needs.
The thermal imaging function supports dual-light fusion imaging with infrared and visible light, with a temperature measurement range of -20°C to 550°C. It can automatically track the highest and lowest temperature points, quickly locating abnormal hot spots in household outlets, automotive circuit boards, fuse boxes, distribution cabinet wiring, underfloor heating pipes, and water leakage areas. This helps identify issues such as poor connections, short circuits, overheating, and component faults.

Multiple Measurement Functions

The AUTOOL DM208 combines infrared thermal imaging and multimeter functions. It supports AC/DC voltage, current, resistance, capacitance, diode, continuity, and frequency (Hz) measurement. It also features TRMS, data hold, and a 25,000-count high-precision display, as well as data transfer and firmware upgrades.

Intelligent Temperature Detection with Automatic Hot/Cold Spot Tracking:The DM208 supports automatic tracking of the highest and lowest temperature points, allowing users to intuitively compare temperature differences between different areas and quickly locate abnormal hot spots in automotive circuit boards, fuse boxes, and other areas for efficient troubleshooting.

Dual-Light Fusion Display with 4 Color Palettes:The DM208 supports a temperature measurement range of -20°C to 550°C and provides 4 color palette modes to meet different testing and analysis needs.

2.4-Inch IPS Color Display:The DM208 features a 2.4-inch backlit display with a resolution of 320 × 240. It supports a 25,000-count high-precision display and can simultaneously show measurement values and waveform curves.

One-Touch Image and Data Saving:The DM208 supports one-touch saving of thermal images and measurement data for easy playback on the device. It can also be connected to a computer for viewing and analysis, making data recording and review more convenient.

Long Battery Life and Convenient Charging:The DM208 is equipped with a built-in 2000mAh lithium battery for extended use. The Type-C interface supports fast charging, allowing the battery to be quickly recharged when needed.

Firmware Upgrade:The DM208 supports firmware upgrades by connecting to a computer via Type-C, allowing continuous optimization of device performance and functions.

3-Year Warranty:For equipment damage caused by non-human factors, AUTOOL provides free replacement parts within three years. If you encounter any issues, please contact us at any time. We will respond promptly within 24 hours. We are committed to taking responsibility for our products, customers, and partners.

Specifications

Technical data

DM208

Infrared Resolution
32×32
Infrared Band
8~14um(Wavelength)
Emissivity
0.10~1.00 Adjustable
Frame Rate
7 Frames/Second
Field of View(FOV)
33°(H)×33°(V)
Focus Method
Auto Focus
Minimum Focusing Distance
0.25m
Effective Temp.Measurement Distance
≤2m
Temperature Measurement Range
-20~550℃
Temperature Measurement Accuracy
±2C or 2%
High/Low Temperature Values
Automatic Measurement Capture
Temperature Measurement Point
Center Point
Temperature Measurement Area
Maximum/Minimum/Real-Time Temp.
Display Screen
2.4-inch TFT
Display Resolution
320×240
Imaging Mode
Infrared +Visible Light
Color Palette
Black &White,Iron Red,Heat,Rainbow
Firmware Upgrade
Supported
Power Supply
3.6V~4.2V Lithium Battery
Charging
USB Interface 5V
Charging Time
Approximately 3 Hours
Working Time
>6 Hours
